Pneimohidrauliskie domkrati

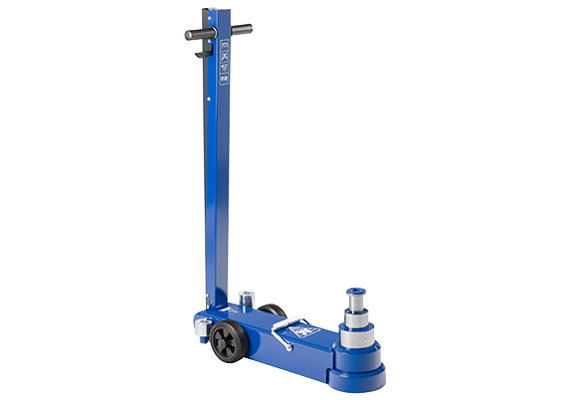

3-stage air hydraulic jack for low buses and other low clearance vehicles
- Minimum height of only 150 mm combined with a high lifting capacity
- Telescopic cylinders ensure an excellent maximum lift together with a low closed height
- Designed for heavy-duty, intensive commercial use
- Built-in safety overload valve
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering
- Ergonomic handle with push buttons
- With 2 extensions (50/100 mm)
| Capacity | 50 / 25 / 10 t |
| Min. height | 150 mm |
| Max. height | 210 / 265 / 335 mm |
| Frame length | 810 mm |
| Handle length | 1160 mm |
| Width | 200 mm |
| Width (with wheels) | 310 mm |
| Air supply | 9 - 10 bar |
| Air consumption | 350 l/min |
