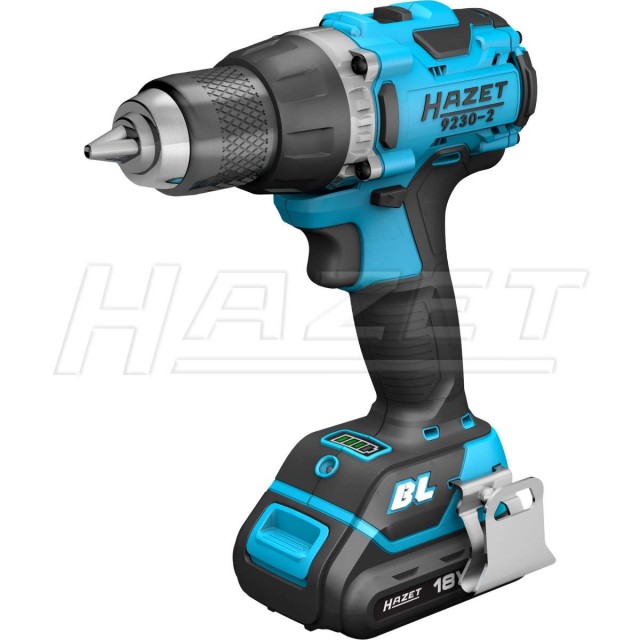

Cordless drilling machine set ∙ 18 V ∙ 2 Ah ∙ 4-piece

Number of tools: 4


• Article no.: 9230-2/4
• EAN: 4000896218967

Product information

• High efficiency thanks to brushless motor

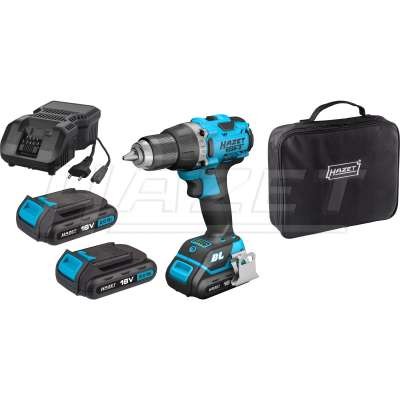

• 4-piece set
  1 cordless drilling machine
  1 quick charger (40 minutes)
  2 Li-ion rechargeable batteries 18 V, 2 Ah
• Delivered in a robust bag
• 18 V, 2 Ah
• Compatible with HAZET rechargeable batteries 9212-02 and 9212-05
• Tool-free metal quick-clamping drill chuck 1-13 mm
• Selectable torque stages 15 + 1 drilling
• Revolutions per minute Step 1: 0–560
  Revolutions per minute Step 2: 0–1900
• Vibration acceleration screwing: 0.8 m/s2
  Vibration acceleration drilling: 2.3 m/s2
• Robust machine housing
• Suitable for continuous operation
• Including belt clip, attachable on both sides
• Weight with battery: 1.68 kg
  Weight without rechargeable battery: 1.27 kg
• Brushless DC motor (BLDC):
  • Longer lifetime, less wear, no change of the carbon brushes required
  • Greater efficiency and thus less battery consumption – More compact motor allows for smaller installation dimensions
• Plastic roll
• Tightening torque max.: 60 Nm
• Sound pressure level: 68 dB(A) Lp A

Do you know – Li-Ion batteries:

• Do not have any memory effect
• Consist of cells with 3.6 V each
• After full charge they have a higher voltage than 3.6 V i.e. 5 cells each 3.6 V = 18 V – but after full charge a peak voltage of up to 20 V is possible
  Attention: For a longer lifetime of the battery please store it charged up to 50 to 80 % only
• Have an energy density which is twice as high as nickel cadmium batteries, for example
• Have a nominal voltage three times higher than a nickel metal hydride battery
• Require multiple complete charging cycles to reach full capacity
• Number of tools: 4

TECHNICAL DATA

• Number of tools : 4
• Sound pressure level : 68 dB(A) Lp A
• Tightening torque max. : 60 Nm
